NRFit® portfolio

Reducing risks of misconnections in regional anaesthesia

Medical Professional

This information is meant for medical professionals only. Please confirm that you are a medical professional before accessing the information.

Confirm Yes, I am a health care professional. Cancel No, I am not a health care professional.

Spinal anaesthesia NRFit®

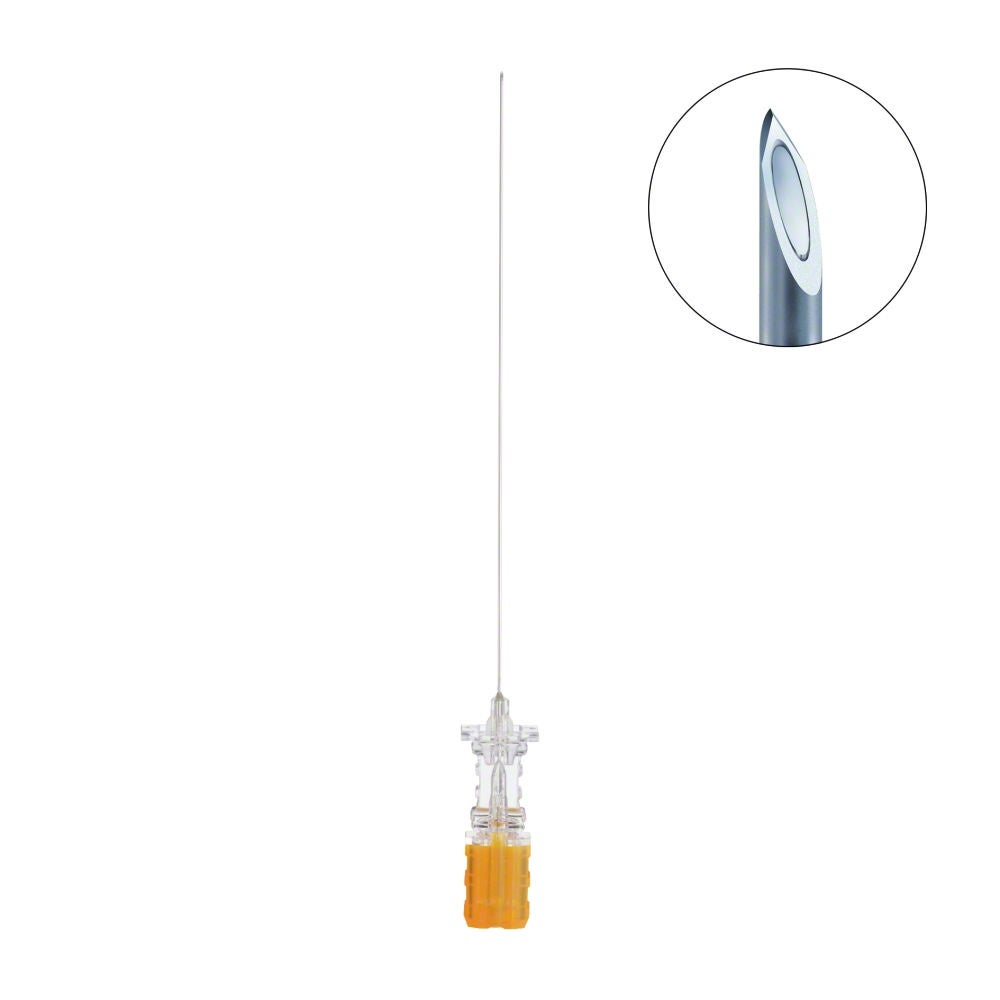

Spinocan® NRFit®

Regional Anesthesia products with NRFit® connector, in line with the ISO Standard 80369-618 G - 29 GSharp / cutting bevelTranslucent needle hubColor-coded stylet hub indicating gauge size

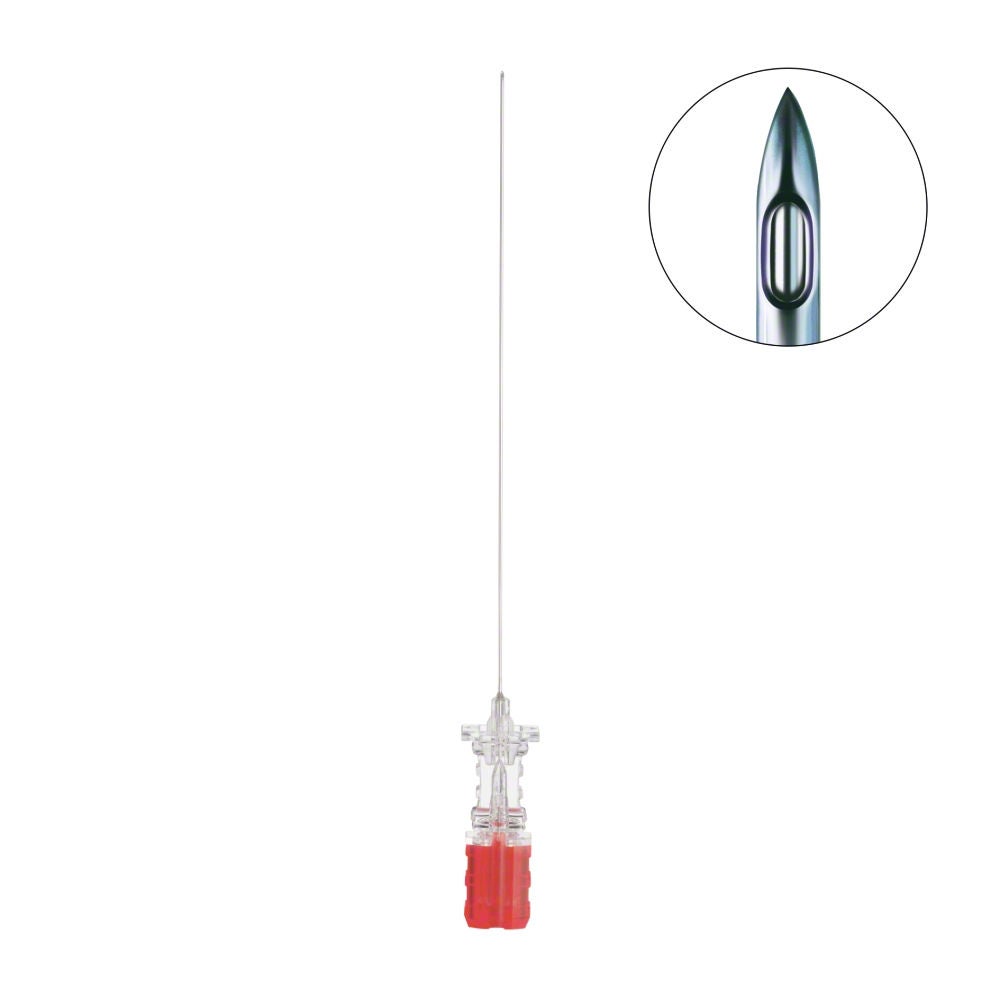

Pencan® NRFit®

Regional Anesthesia products with NRFit® connector, in line with the ISO Standard 80369-6 22 G - 27 GPencil point tip and opening design allows avoidance of incomplete blocksTranslucent needle hubColor-coded stylet hub indicating gauge sizePediatric sizes available

Epidural anaesthesia sets NRFit®

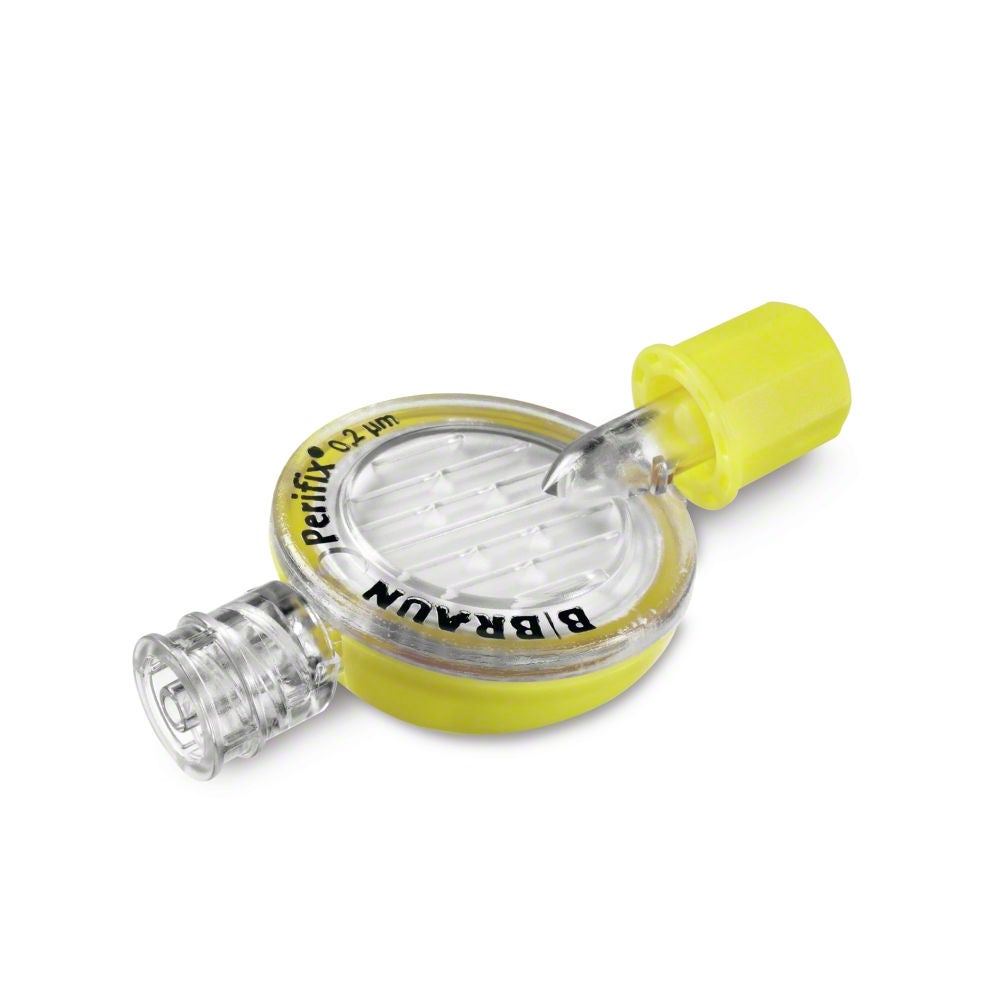

Perifix® Filter NRFit®

Regional Anesthesia products with NRFit® connector, in line with the ISO Standard 80369-60.2 µm particle filterPressure resistance up to 7 barFilter fixation on patient in combination with self-adhesive PinPad

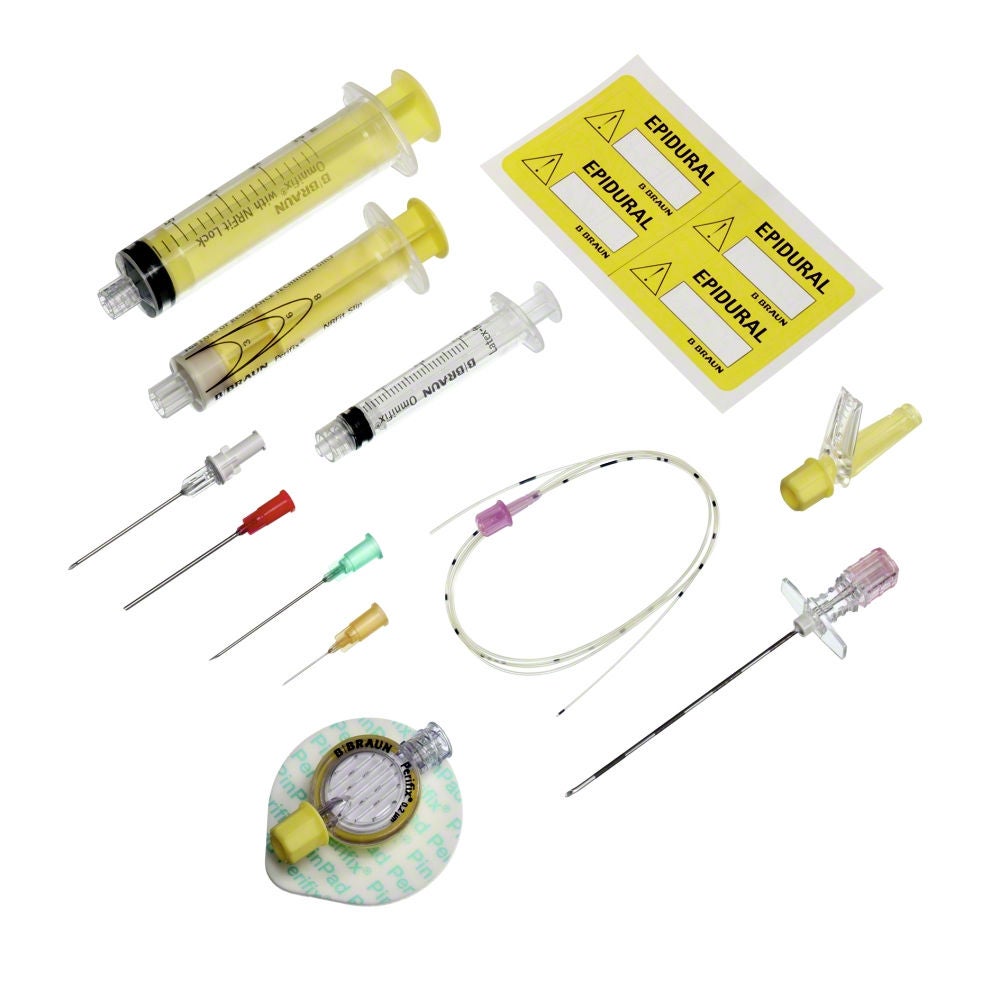

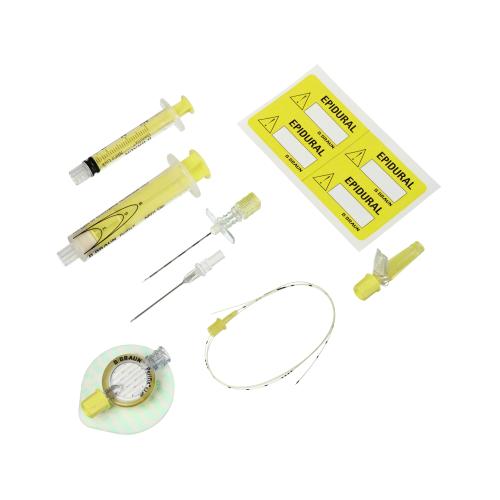

Perifix® Complete Set NRFit®

Regional Anesthesia products with NRFit® connector, in line with the ISO Standard 80369-6Content overview:Perican® epidural needle NRFit®Tuohy bevel1 cm length markingDiameter 1.30 x 80 mm, in 18 G orDiameter 1.70 x 80 mm, in 16 GPerifix® epidural catheter NRFit®Perifix® Standard, Soft-Tip, or ONE catheterLength 1000 mmThreading assist guidePerifix® catheter connector NRFit® in "click and ready" systemPerifix® filter 0.2 µm NRFit® and Perifix® PinPad0.2 µm particle filterPressure resistance up to 7 barFilter fixation on patient in combination with self-adhesive PinPadLOR syringe NRFit®

Perifix® Pediatric Sets NRFit®

Regional Anesthesia products with NRFit® connector, in line with the ISO Standard 80369-6Perifix® filter 0.2 µm NRFit® and Perifix® PinPad0.2 µm particle filterPressure resistance up to 7 barFilter fixation on patient in combination with self-adhesive PinPad

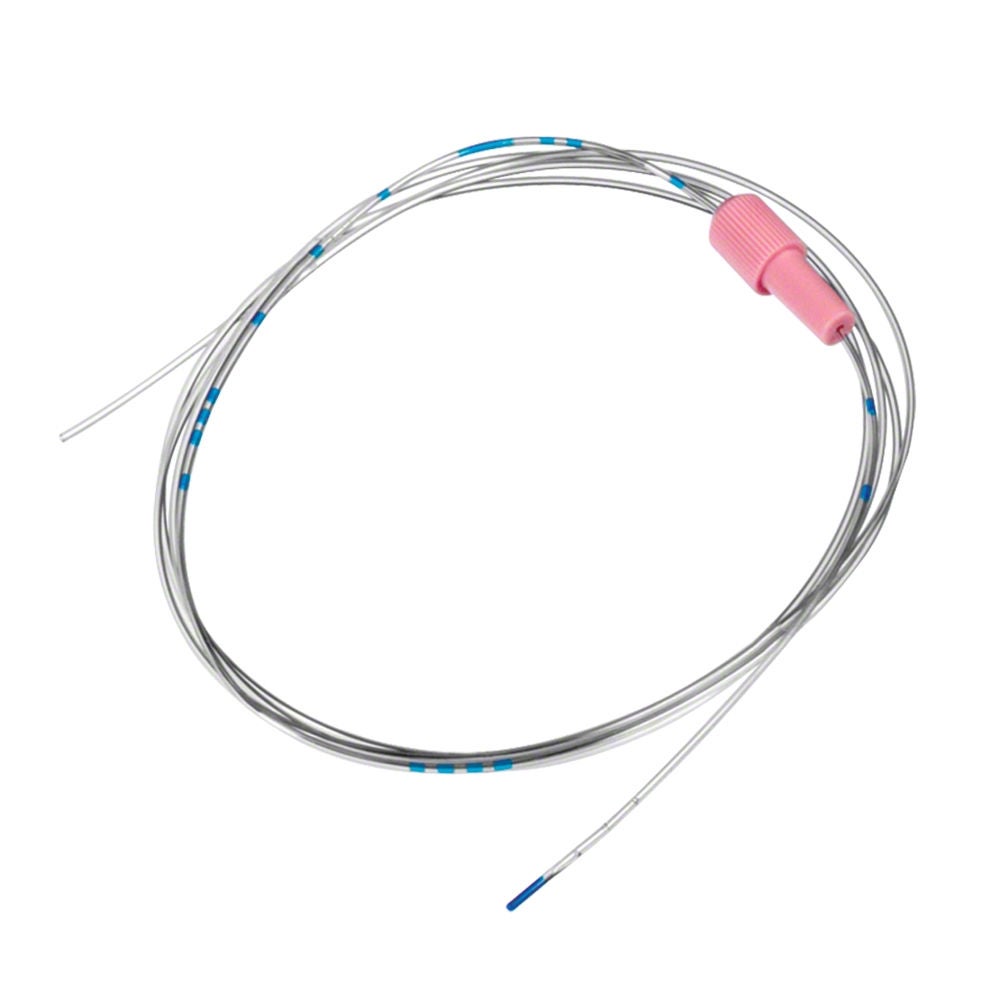

Epidural catheter NRFit®

Perifix® ONE NRFit®

Regional Anesthesia products with NRFit® connector, in line with the ISO Standard 80369-6The polyamide core provides the needed stiffness for easier catheter insertionAn outer Polyurethane layer cares for the desired softness for placement inside the body6 micro-holes enhance the spread of the anesthetic drugAn exclusive tapered, atraumatic catheter tip designThree yellow stripes to identify Perifix® ONE NRFit® as a Regional Anesthesia lineThreading assist guide

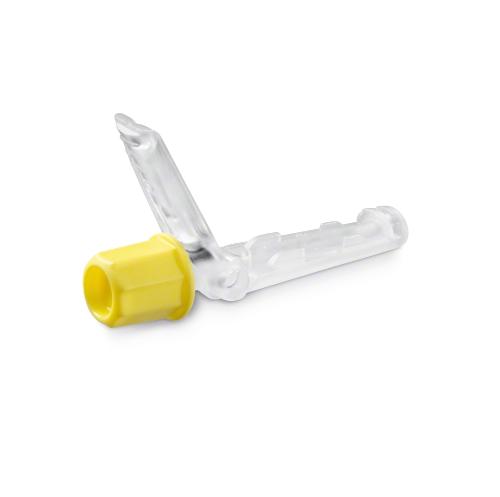

Perifix® Catheter Connector NRFit®

Regional Anesthesia products with NRFit® connector, in line with the ISO Standard 80369-6  Transparent lid: clear visibility of the catheterIn "click and ready" systemColor-coded body for two different sizesTransparent body for 19 GYellow body for 20 G / 24 G

Epidural needles NRFit®

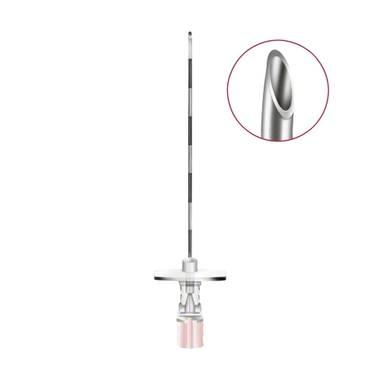

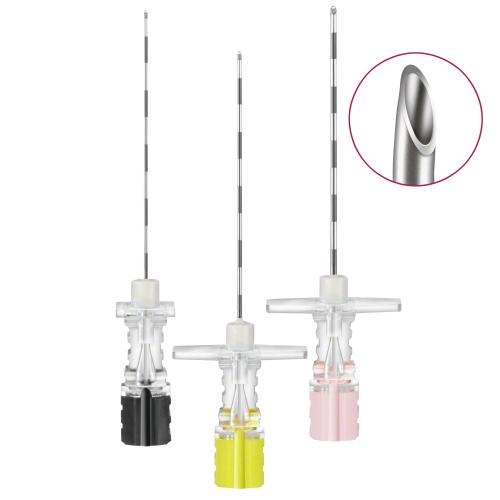

Perican® NRFit®

Regional Anesthesia products with NRFit® connector, in line with the ISO Standard 80369-6For continuous and single-shot techniquesDifferent needle sizes (16 G, 18 G, 20 G) and pediatric sizes availableWith 1 cm graduationWingsTranslucent needle hubColor-coded stylet hub indicating gauge size

Perican® Paed NRFit®

Regional Anesthesia products with NRFit® connector, in line with the ISO Standard 80369-6For continuous and single-shot techniquesThree different needle sizes (18 G, 20 G, 22 G)5 mm length markingsWings (18 G and 20 G)Translucent needle hubColor-coded stylet hub indicating gauge size

Peripheral nerve blocks - Single shot NRFit®

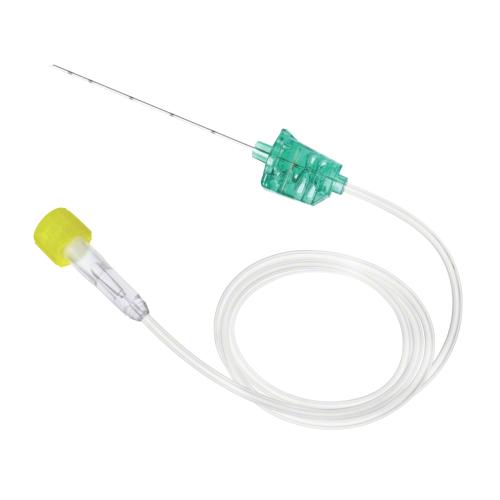

Ultraplex® 360 NRFit®

Regional Anesthesia products with NRFit® connector, in line with the ISO Standard 80369-6.For single shot nerve blocks performed under ultrasound.Navigation Safety code for identification of the needle and needle tip positionVisibility 360° X-pattern results in better ultrasound visualization and tip identification compared to previous designsTactile Feedback designed for consistent puncture - same 30° back-cut bevel as previous Stimuplex® Ultra and Ultraplex® needlesPediatric Use The device can be used for all patients in need for anesthesia or pain therapy by plexus or peripheral nerve blocks. No gender or age related limitations. Peripheral nerve block needles and catheters can be used for adults, pediatrics and neonates.

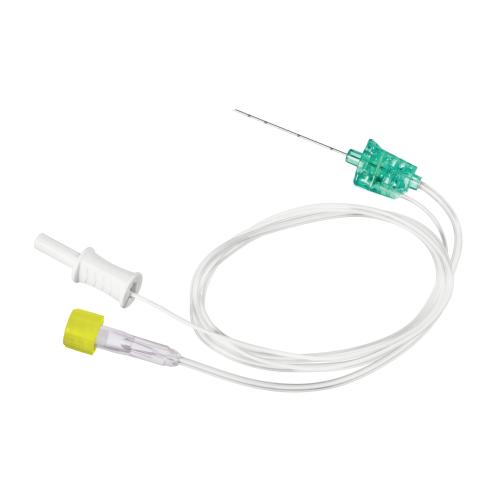

Stimuplex® Ultra 360 NRFit®

Regional Anesthesia products with NRFit® connector, in line with the ISO Standard 80369-6.For single shot nerve blocks performed under ultrasound and nerve stimulation (dual guidance).Navigation Safety code for identification of the needle and needle tip positionVisibility 360° X-pattern and clear coating result in better ultrasound visualization and tip identification compared to previous designsTactile Feedback designed for consistent puncture - same 30° back-cut bevel as previous Stimuplex® Ultra and Ultraplex® needlesPediatric Use The device can be used for all patients in need for anesthesia or pain therapy by plexus or peripheral nerve blocks. No gender or age related limitations. Peripheral nerve block needles and catheters can be used for adults, pediatrics and neonates.

Peripheral nerve blocks - Continuous NRFit®

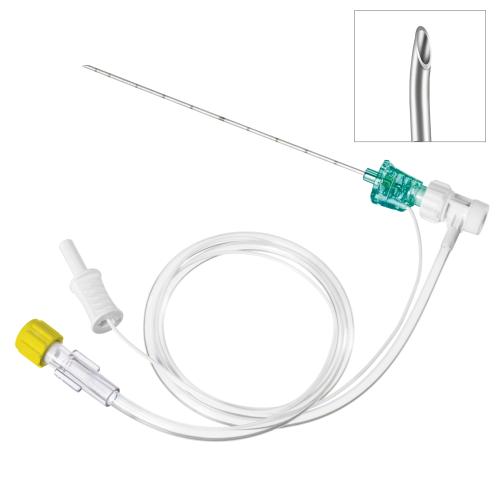

Contiplex® S Ultra 360 NRFit® Set

Regional Anesthesia products with NRFit® connector, in line with the ISO Standard 80369-6.For continuous peripheral nerve blocks (cPNB) performed under ultrasound and nerve stimulation (dual guidance).Catheter-through-needle systemCatheter placement system with threading assist guideSide port valve technique for simultaneous injection and aspirationContiplex® S Ultra 360® NRFit® needleSafety code for identification of the needle and needle tip position360° X-pattern results in better ultrasound visualization and tip identification compared to previous designs20° facet bevel, together with a high quality coating enables smooth gliding through tissueContiplex® ONE catheterVisible under ultrasoundPerifix® catheter connector NRFit® "Click and ready" systemPerifix® filter 0.2 µm NRFit® High pressure resistance up to 7 bar for enhanced safetyPerifix® PinPadFixation on patient with self-adhesive PinPad for comfort and flexibilityFurther set componentsOmnifix®  NRFit® syringe, 5 ml for priming and aspirationSide Port ValveCatheter labels (Nerve Block)Pediatric UseThe device can be used for all patients in need for anesthesia or pain therapy by plexus or peripheral nerve blocks. No gender or age related limitations. Peripheral nerve block needles and catheters can be used for adults, pediatrics and neonates.

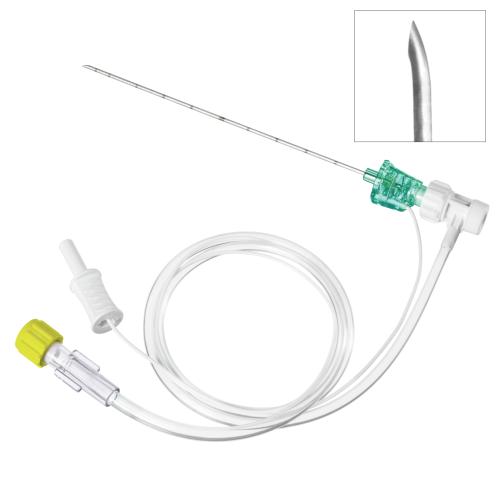

Contiplex® Tuohy Ultra 360 NRFit®

Regional Anesthesia products with NRFit® connector, in line with the ISO Standard 80369-6.For continuous peripheral nerve blocks (cPNB) performed under ultrasound and nerve stimulation (dual guidance).Catheter-through-needle systemCatheter placement system with threading assist guideSide port valve technique for simultaneous injection and aspirationContiplex® Tuohy Ultra 360® NRFit® needleSafety code for identification of the needle and needle tip position360° X-pattern results in better ultrasound visualization and tip identification compared to previous designs20° facet bevel, together with a high quality coating enables smooth gliding through tissueContiplex® ONE catheterVisible under ultrasoundPerifix® catheter connector NRFit® "Click and ready" systemPerifix® filter 0.2 µm NRFit® High pressure resistance up to 7 bar for enhanced safetyPerifix® PinPadFixation on patient with self-adhesive PinPad for comfort and flexibilityFurther set componentsOmnifix®  NRFit® syringe, 5 ml for priming and aspirationSide Port ValveCatheter labels (Nerve Block)Pediatric UseThe device can be used for all patients in need for anesthesia or pain therapy by plexus or peripheral nerve blocks. No gender or age related limitations. Peripheral nerve block needles and catheters can be used for adults, pediatrics and neonates.

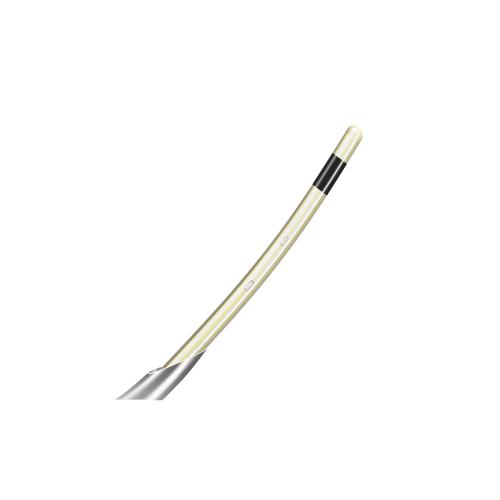

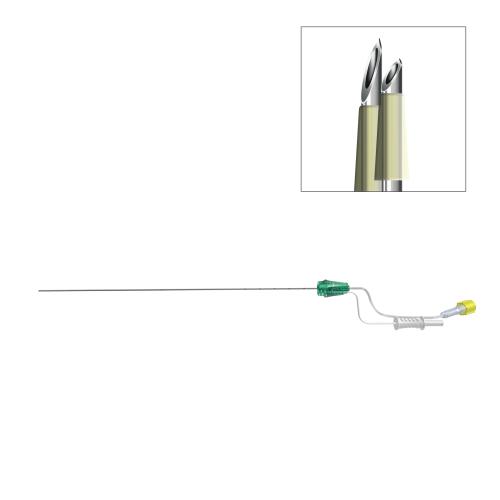

Contiplex® C NRFit®

Regional Anesthesia products with NRFit® connector, in line with the ISO Standard 80369-6.For continuous peripheral nerve blocks (cPNB) performed under ultrasound and nerve stimulation (dual guidance).Catheter-over-needle systemPatented catheter-placement systemAs Simple as a Single Shot with the Power of a CatheterLess complexity: catheter placement in one stepLess trauma1 : More patient comfort with G25 puncture cannulaLess dislodgement: higher holding forcesContiplex® C NRFit® needleFully coated 15° or 30° facet bevelIntegrated injection tubingPerifix® catheter connector NRFit® "Click and ready" systemPerifix® filter 0.2 µm NRFit® High pressure resistance up to 7 bar for enhanced safetyPerifix® PinPadFixation on patient with self-adhesive PinPad for comfort and flexibilityPediatric UseThe device can be used for all patients in need for anesthesia or pain therapy by plexus or peripheral nerve blocks. No gender or age related limitations. Peripheral nerve block needles and catheters can be used for adults, pediatrics and neonates.

NRFit® accessories & pump disposables

Contiplex® S Ultra 360 NRFit® Set

Regional Anesthesia products with NRFit® connector, in line with the ISO Standard 80369-6.For continuous peripheral nerve blocks (cPNB) performed under ultrasound and nerve stimulation (dual guidance).Catheter-through-needle systemCatheter placement system with threading assist guideSide port valve technique for simultaneous injection and aspirationContiplex® S Ultra 360® NRFit® needleSafety code for identification of the needle and needle tip position360° X-pattern results in better ultrasound visualization and tip identification compared to previous designs20° facet bevel, together with a high quality coating enables smooth gliding through tissueContiplex® ONE catheterVisible under ultrasoundPerifix® catheter connector NRFit® "Click and ready" systemPerifix® filter 0.2 µm NRFit® High pressure resistance up to 7 bar for enhanced safetyPerifix® PinPadFixation on patient with self-adhesive PinPad for comfort and flexibilityFurther set componentsOmnifix®  NRFit® syringe, 5 ml for priming and aspirationSide Port ValveCatheter labels (Nerve Block)Pediatric UseThe device can be used for all patients in need for anesthesia or pain therapy by plexus or peripheral nerve blocks. No gender or age related limitations. Peripheral nerve block needles and catheters can be used for adults, pediatrics and neonates.

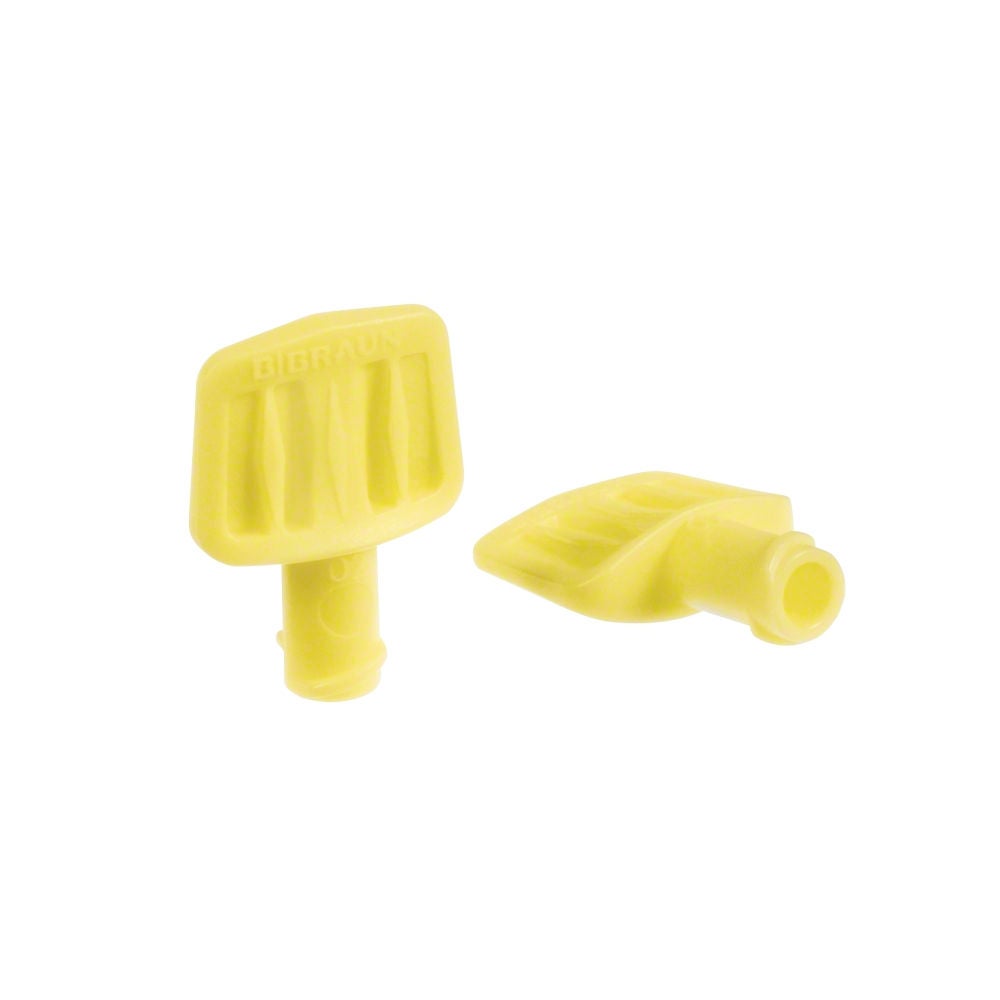

NRFit® syringe caps and NRFit® stoppers

NRFit® syringe caps and NRFit® stoppers for Regional Anesthesia products in line with the ISO Standard 80369-6Syringe caps and stoppers Syringe caps with female NRFit® connector, to close NRFit® syringesStopper caps with male NRFit® connector, to close e.g. the NRFit® filter or Perifix® catheter connectorNot manufactured with latex, DEHP, or PVC

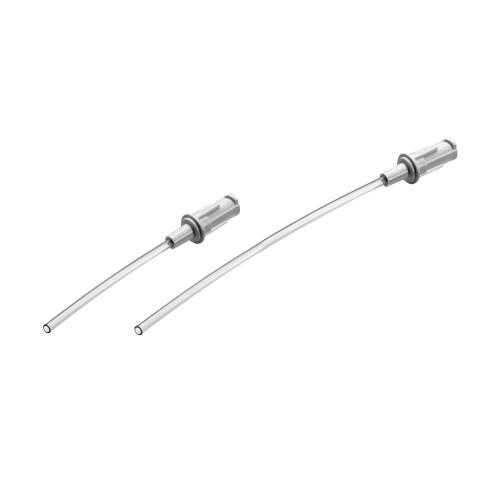

Sterifix® Filter Straws Type NRFit®

Filter straw for Regional Anesthesia procedures with NRFit® connector, in line with the ISO Standard 80369-6Filter straw with 5 micron filter and a female NRFit® lock connectorFor withdrawal or injection of medication from glass vialsNot manufactured with latex, DEHP, or PVC

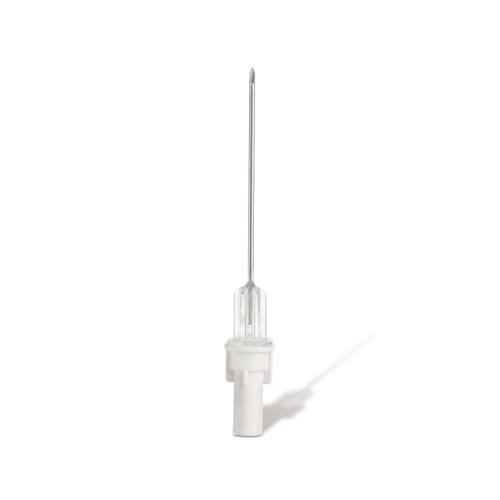

Sterifix® filter needle NRFit®

Filter needle for Regional Anesthesia procedures with NRFit®connector in line with the ISO Standard 80369-6Reduces risk of particle injection with glass ampoules5 micron filterSharp bevelNot manufactured with latex, DEHP, or PVC

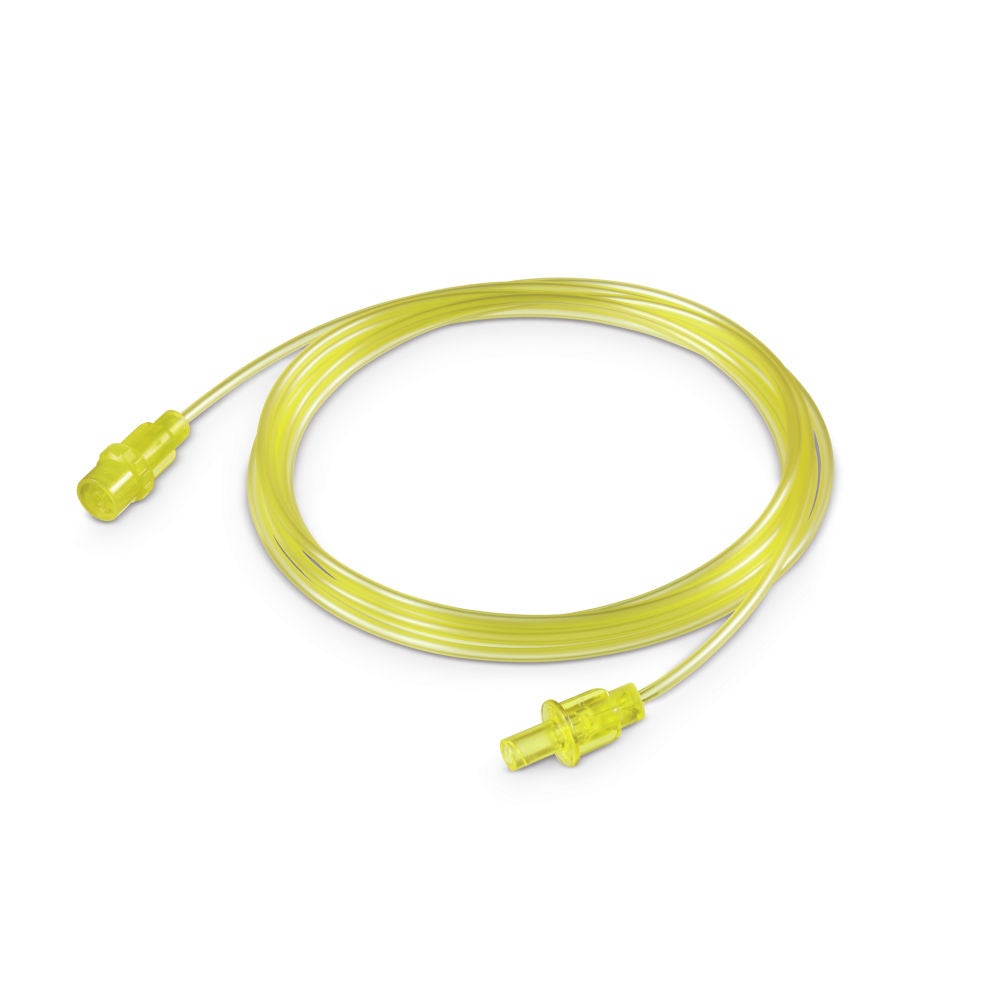

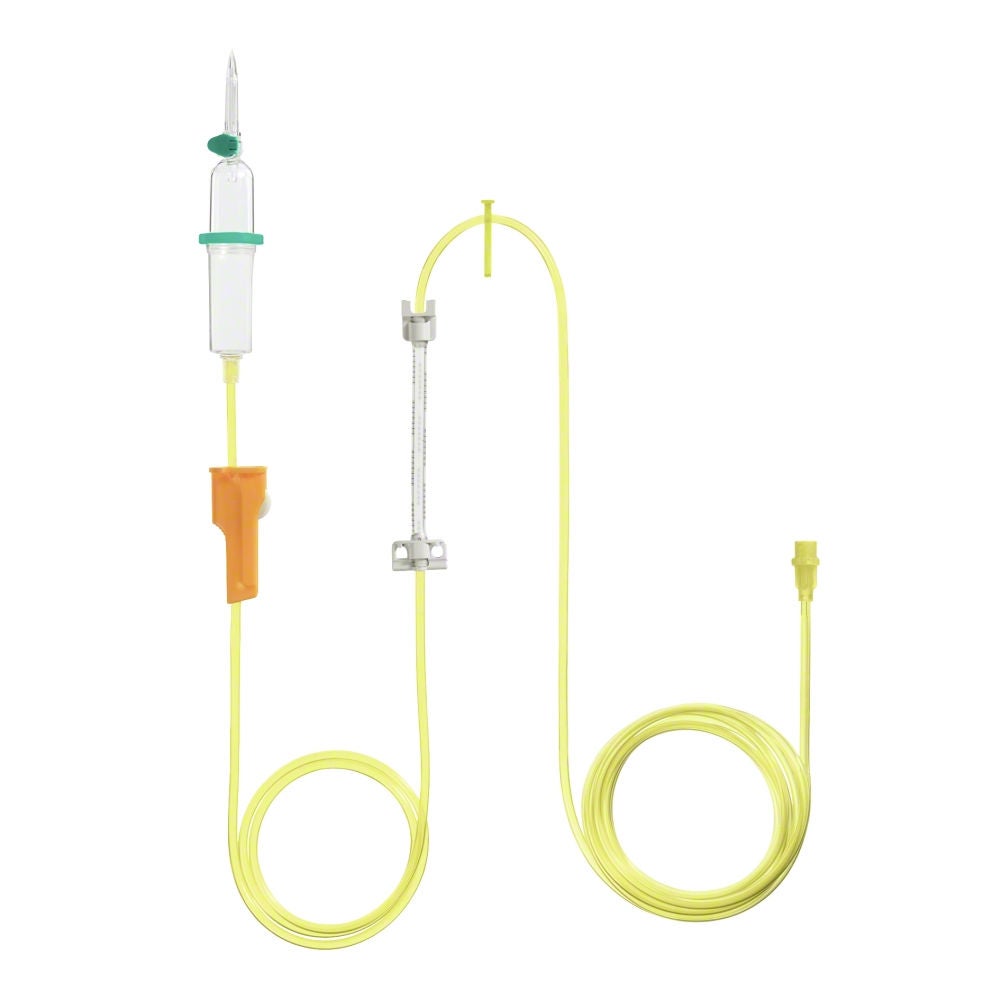

Infusomat® Space® Line NRFit® (Regional Anesthesia)

Infusomat® Space® Line NRFit® are dedicated administration sets for the application of anesthetics in combination with B. Braun Infusomat® Space®, Infusomat® Spaceplus and Infusomat® fmS.The line consists of PUR (not manufactured with PVC and DEHP), a translucent yellow tube and a silicon pump segment. The color codes and shapes of the pump element guide the user while loading the pump quickly and safely.The Infusomat® Space® Line NRFit® are equipped with dedicated NRFit® connectors (smaller in diameter compared to Luer Lock connectors) to reduce the risk of misconnections. The yellow colored tubing and connectors allow faster identification of Regional Anesthesia devices.

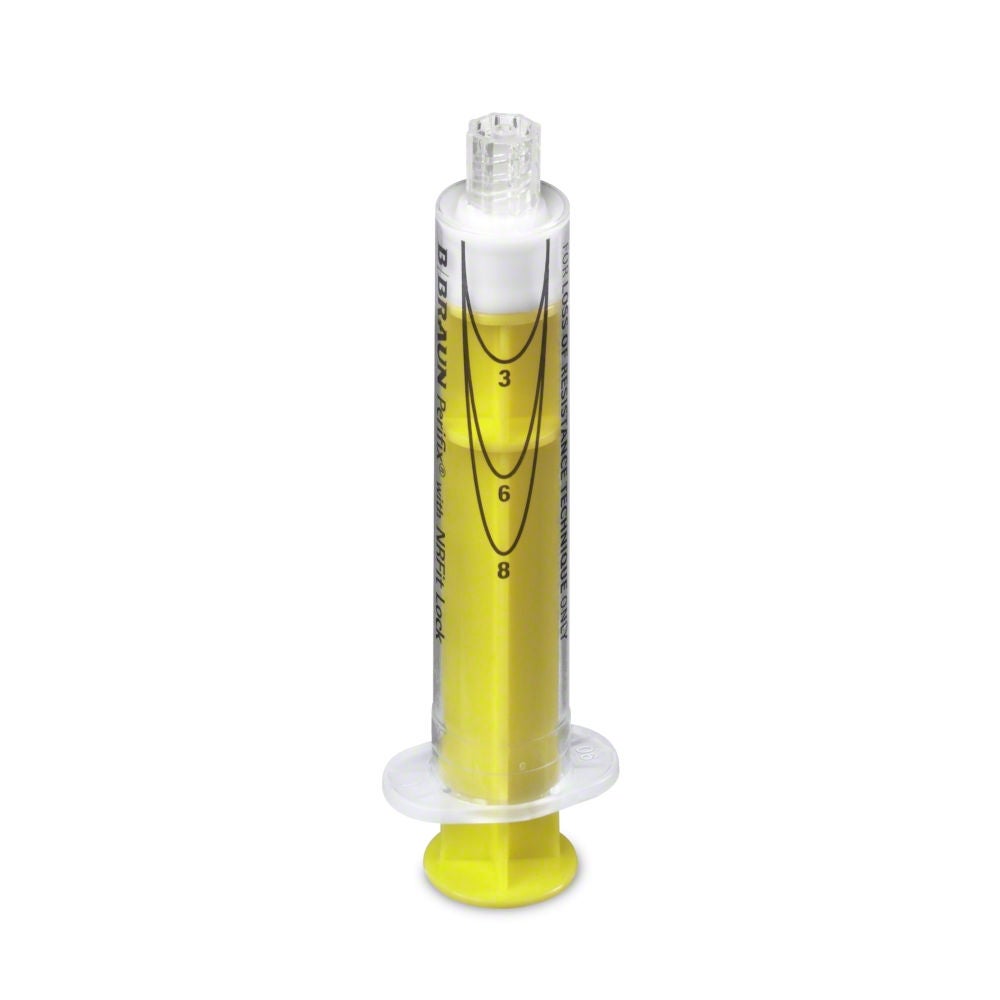

Perifix® LOR Syringe NRFit®

Regional Anesthesia products with NRFit® connector, in line with the ISO Standard 80369-6Loss-of-Resistance techniqueEasy gliding syringePlunger with safety stopParabolic graduationMaterial: Polypropylene, piston made of TPE (thermoplastic elastomer)

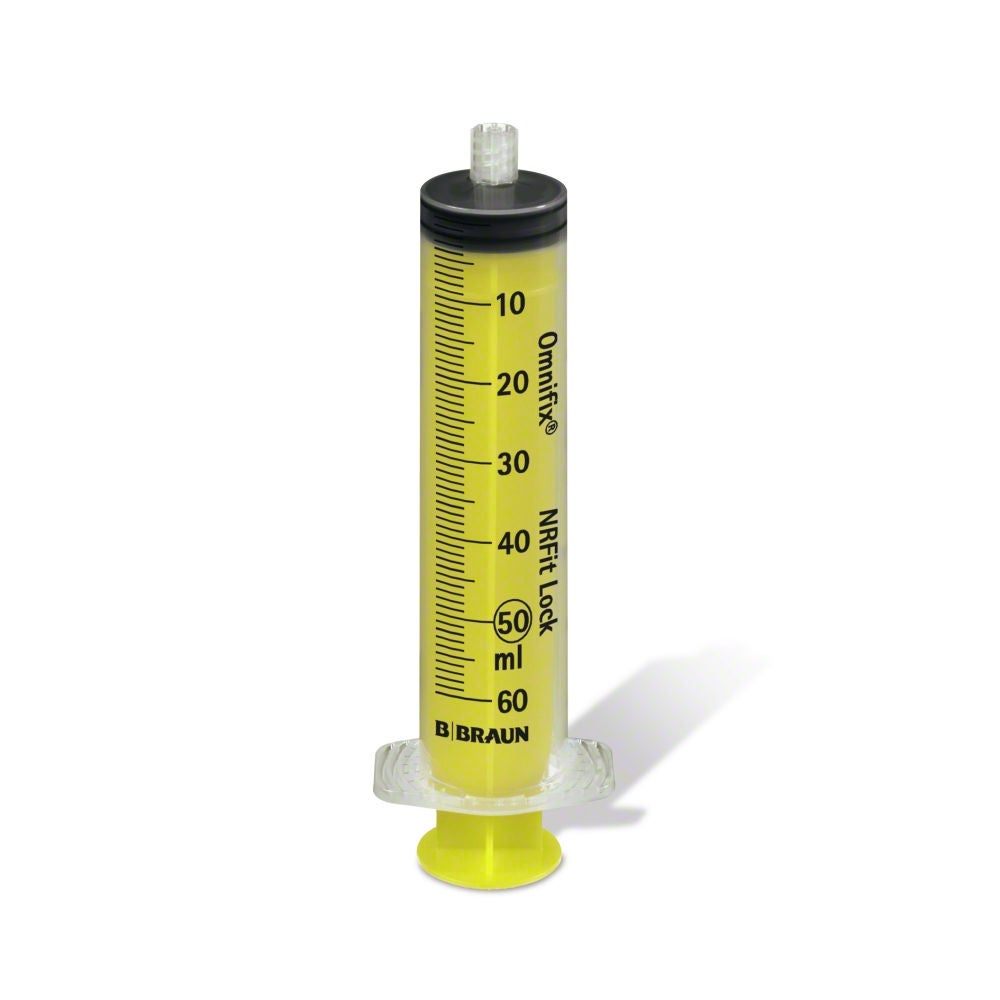

Omnifix® Syringes NRFit®

Omnifix® type NRFit® is a hypodermic 3-piece syringe with NRFit® Slip or NRFit® Lock connector and without needle. The single-use device is intended to be used for the following purposes:Aspiration and injection of fluids in combination with adequate medical devices via clinically intended access routes for Regional Anesthesia.Admixture of drugs to an infusion solution according to SPC of medication in combination with adequate medical devices.Extraction of body fluids and tissue via aspiration together with adequate medical devices.Infusion by using an infusion pump released to be used for pump-assisted infusion.The medical devices are intended to be used for the respective intended procedure for Regional Anaesthesia. No gender or age-related limitations; 3-piece syringes can be used for adults, pediatrics and neonates.The syringe barrel and plunger are made of polypropylene.Note: Only NRFit Lock syringes are released for usage with pumps.
